Mast lifting method: Mechanical hand winch (electric winch can be installed upon request)
Floodlight power: 4 x 500 W (2000 W in total)
Floodlight type: Halogen
Built-in generator: Yes
Built-in generator power: 7 kW
Unpacked weight: 600 kg
Warranty: 1 year
Fuel consumption: 1.7 l / h
Accompanying documentation: Product passport, operating instructions, product quality certificate (certified copy), CU declaration of conformity (certified copy), TCP (original), certificates for components and components used in production (upon request). Accounting closing documents (integrated delivery note, signed original of the contract packed in a separate envelope).
Modification: available; any parameter and completeness c.an be modified as per customer's request. Manufacturer: Argus-M, LLC (Moscow, Russia)
Lead time: 1-2 weeks
Delivery: Russia & worldwide.
MOQ: 1 pcs.
Manufacturer: Argus-M, LLC (Moscow, Russia)

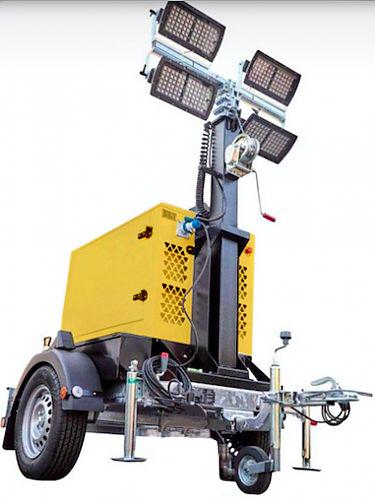

Lighting trailer-mounted mast with a generator "Argus- Light" designed based on PROMETEY
Order
Argus Light Mobile lighting mast with generator
Leave a request and our manager will call you back
8 hours of battery life
Ergonomic and easy to use
Trailer-mounted
Cheaper than foreign and domestic counterparts by 30%
Leave a request and our manager will call you back
By clicking on the button, you consent to the processing of personal data and agree to the privacy policy.
The lighting mast along with a diesel generator (6 kW) is installed on a single-axle trailer.
Using a hand winch, the mast rises to a height up to 9 meters. There are four LED floodlights with power up to 200W. Each one of them can be switched on independently. Battery life is about 8 hours.

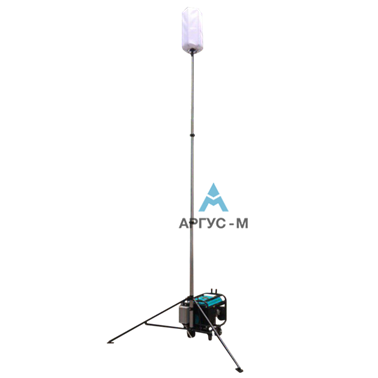

Inflatable Light Masts with generator (ELG) and without generator (EL)
Order
Characteristics
Power supply: Single-phase AC power grid with a voltage of 220 V, 50 Hz, two-phase AC power grid with a voltage of 380 V, 50 Hz or from an autonomous power plant
Light source: High pressure gas discharge lamp DNaT, DNaZ, 600 W mercury arc lamp DRI.
Power of lamp is 600 W, power of compressor forcing air into the fabric diffuser sleeve is 400 W. Power reserve ~ 1 kW.
Luminous flux: 48,000 - 120,000 lm.
Installation of two or more lamps is possible.
Lighting area: 10,000 m2
Compressor: capacity of 150 to 1200 W., performance 2.5 - 3.5 m3/ min, with an overpressure of 10,000 - 14,000 Pa.
Dimensions: 600x450x800 mm. (dimensions may vary depending on the type of installation chosen).
Installation height in working order: 3-5 m.
Total weight: 65 kg. Weight may vary depending on equipment.
Inflation time of the tissue cylinder: 1 min, the time of full lighting of the lamp - 5 min., It is recommended to turn on the lamp again after 15 - 20 minutes.
Wind resistance (with stretch marks): up to 20 m / s
Climatic version: U
Placement category: according to GOST 15150
Protection degree: IP 65/44
Electric shock protection class: II
Light distribution: class P according to GOST 17677
Emergency lighting installations OU-2000 and OU-1000 (lighting masts)
Order
Characteristics
Model: Lighting installation OU-2000
Searchlight power: 4х0.5 kW
Power supply: electrical network 220V, 50Hz, or mobile power generators with a capacity of 2 kW or more.
Wind resistance: up to 25 m / sec.
Mast height: 3.5 m
Dimensions in folded position: (VxLxH): 410x720x485 mm
Power cable length: 20 m (cable length may be extended)
Weight: 40 kg
Production material: steel St.20
Made: Russia.
Manufacturer's warranty: 3 years

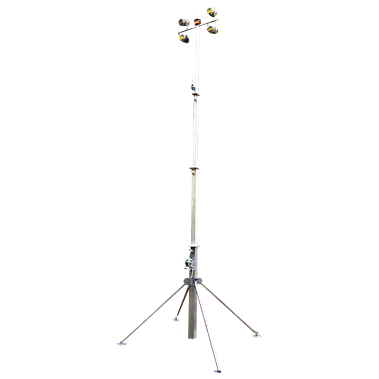

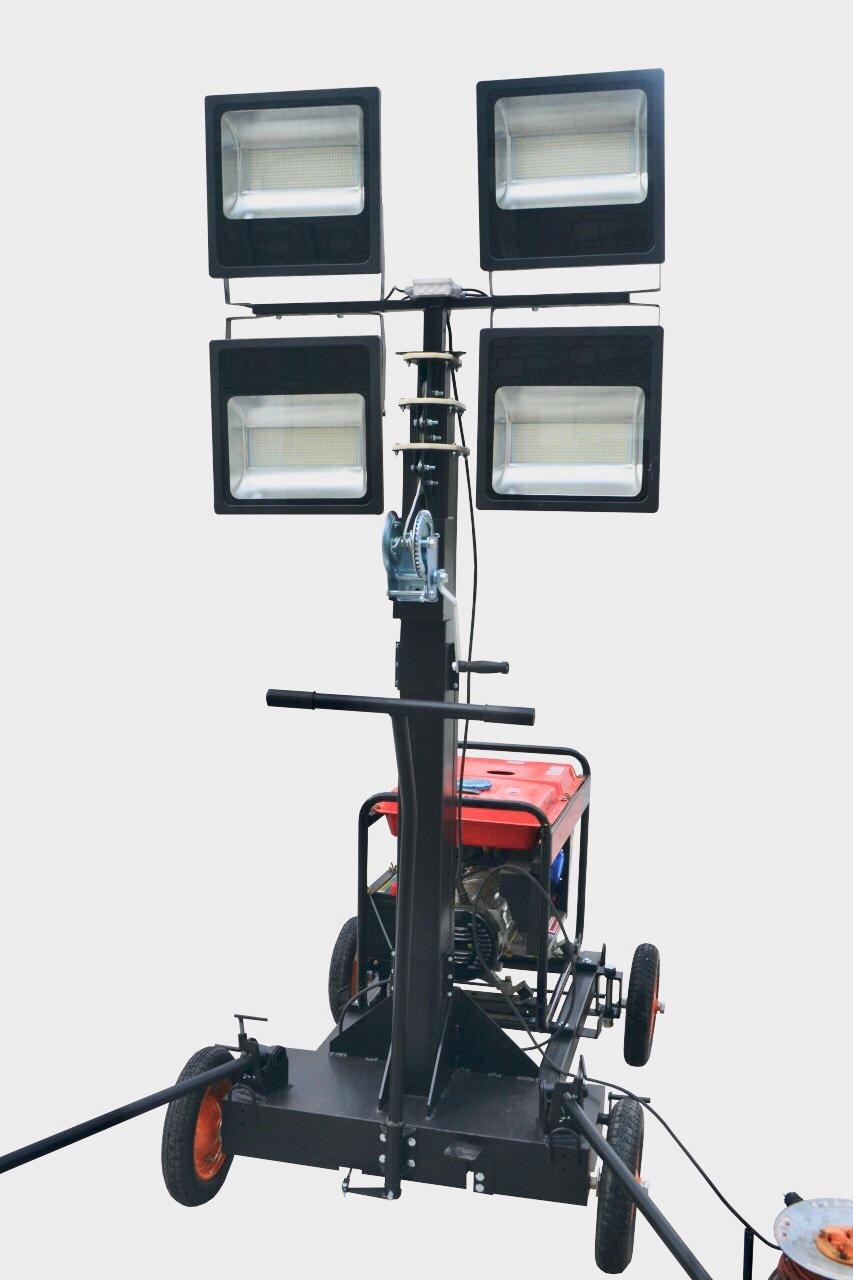

Masts with a winch PMO-7m (L) -4x300W (S)
Order
Characteristics
Lifting height of mast: 7 m
Floodlight power: 4 x 300 W
Spotlight type: LED
Net weight: 66 kg
Accompanying documentation: Product passport and operating instructions, product quality certificate (certified copy), CU declaration of conformity (certified copy), certificates for components and components used in production (upon request). Accounting closing documents (integrated delivery note, signed original of the contract packed in a separate envelope)
Modification: it is possible to install projectors of a different power, change the height of the mast, the method of fastening, install additional equipment, etc. upon request.
Delivery: Russian & worldwide. Ex-work terms are available.
MOQ: 1 pcs.
Manufacturer: Argus-M, LLC (Moscow, Russia)
Argus.Mayak Lighting Mast with generator (ELG) and without generator (EL)
Order
Characteristics
Built-in generator: available
Lamp type: LED
Power supply: built-in generator or ~ 220 V network
Lamp power, W: 300
Lifting height of lamps, m: 5
Weight, kg: 60
Wind resistance, m / s: up to 20 (with guy wires, included in the kit)
Lighting sledge drag for open-cast mines "Perseus"
Order
Characteristics
Floodlight type: LED
Floodlight power: 4 x 300 W
Generator: N/A
Weight: 670kg
Floodlight lifting height: up to 9m
A mobile quarrying lighting mast, 4 lamps with a power of 300 W each, a lifting device is a mechanical mast with a manual drive.

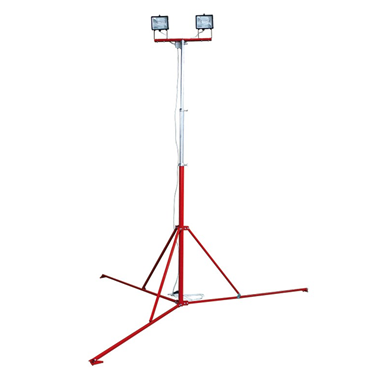

Mobile lighting installations OK-1 and OK-2
Order
Description
Halogen floodlights: 2 pcs
Total power: 1000 or 2000 W
Light flux: 50,000 lm
Lighting area: 500 sq.m
Supply voltage 200 V
Frequency: 50 Hz
Height in working position: 4 m
Folding telescopic mast on a tripod
Weight: 10 kg
Advantages:
Robust and simple construction
Lack of noise and environmental friendliness!
Work near residential buildings and even indoors
Deployment time: 1 min.
Does not require expensive special maintenance
Partially assembled ergonomic and light weight: can be transported in a car!
Minimum manual control, no wires
No fragile elements
Competitive price!
Autonomous heavy-duty lighting system ASOU-3000 with a generator
Order
Description
Lighting area ASOU 3000: 40 000 sq. m., three 1000W metal halide (sodium) lamps with no dazzling effect.
Therefore, the installation is ideal for lighting large areas during construction, repair, oil and gas works performed at night.
Light flux: 360,000 lm
Mobile light mast height: 9 m.
Generator: gasoline (or diesel at the request of the customer). Extra electrical equipment can be powered.
The battery life is 20 hours without refueling.
3 lamps of 1000 W HPS are used.
Built-in compressor which is used simultaneously for lifting the mast and its operation at high wind loads.
The power of floodlights, generator as well as general configuration can be modified as per the customer's request
The lighting installation is made on the basis of a single-axle chassis trailer, with the issuance of vehicle certificate and registration with the traffic police.
The trailer is manufactured in U version in accordance with GOST 15150-69 and is designed for operation at ambient temperatures from -45 ° C to + 40 ° C and relative air humidity up to 80% at +15 ° C. The trailer is designed for operation with cars and trucks that allow towing of a trailer with full weight, equipped with a towing device and an ONTs-1-7 / 30-R1 plug socket in accordance with GOST 9200-76, designed to connect the electrical equipment of the trailer.
The trailer consists of the following main components: a non-separable frame which is fixed to the suspension consisting of two subframes, on which the entire suspension is mounted, a coupling head, a support device, a multifunctional shell and support legs are installed on the drawbar.
Transportation by light vehicles is possible. If necessary, it can be mounted on a trailer for trucks.
The price of the trailer is included in the price.
The mobile lighting installation is ideal for lighting large areas during construction, repair, oil and gas works at night, during emergency rescue operations as well as for lighting during public events.
Mobile autonomous lighting mast "Helios" on solar panels
Order
Description
LED lighting mast on solar panels or hybrid version with diesel generator. 2-year warranty without limitation on operating time. Possibility of completing according to the customer's specifications:
LED floodlights from 30W to 150W each.
Monocrystalline silicon solar cells from 50 W to 300 W each. Rechargeable helium batteries.
Mast heights from 3.5 meters to 9 meters, mechanical / electrical or hydraulic lifting.
Rotation of the mast around the axis up to 360 degrees.
Trailer single-axle or two-axle, wheels R15 / R16
Resistant to wind force from 80 to 100 km / h.
Auxiliary generator from 3 kW to 10 kW.
Advantages
Silent mobile light masts "Helios" do not require fuel, oil or coolant.
Competitive prices.
During the day, light is supplied to high-efficiency solar panels mounted at an angle for maximum efficiency and productivity. The energy is then stored in high
Mobile autonomous video surveillance mast "Argus-Strazh" Rent or sale
Order
Autonomous anti-vandal mobile video surveillance mast "Argus. Strazh" designed to ensure security at various sites & facilities: construction, public events, perimeter guarding, real estate security, traffic monitoring.
The video surveillance system is capable of shooting HD video and transmitting a video stream over any distance. Remote control of the video recording complex and the entire complex as a whole is supported:
Camera rotation
Approximation removal
Night video
Recording on a data carrier in an anti-vandal protectedcasing
Video signal transmission to a remote control point
Powerful swivel trolley, reinforced mast for powerful floodlights.
Lead time: 15 weeks.
Scope of delivery: Telescopic mast with a mechanical lift on a trolley, four metal halide floodlights, a generator, wind resistance cables, wind resistance stakes.

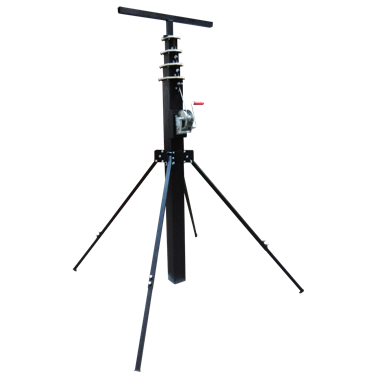

Telescopic mast BESTSELLER!
Order
The mast is used for lifting lighting equipment, video and audio equipment, antennas, transmitters, etc. Consists of aluminum alloy square tubes and hand winch with automatic brake. Additional accessories allow you to install the mast on any horizontal or vertical surface.
Carrying capacity: 40 - 60 kg
Height: 4 - 12 m
Wind resistance: up to 80 km / h
Operating temperature: -50: +50 degrees.
The mast is deployed using a hand winch, the mast sections are extended simultaneously.
Pegasus mobile lighting installation
Order
Characteristics
Halogen waterproof floodlights (IP 67)
4 pcs 1000 W each provide powerful illumination
Each spotlight rotates independently of the others in two planes
Height in working position: 5 m
Retractable mast with pneumatic pump
5,0 kW petrol generator
Base: frame with castors and struts for stability
Lifting mechanism: 0.6 l hydraulic cylinder
Power cable length: 10 m
Advantages
Reliable and simple construction
Illuminates a large area thanks to powerful floodlights!
Autonomous operation!
Works in the absence of power supply.
Works in low temperature & severe conditions!
Does not require expensive special maintenance
Ergonomic when assembled.
The mast can be transported in a passenger car!
Minimum manual control, no wires.
No fragile elements.
Easy to move across the worksite thanks to wheels.
Competitive price!
"Argus.Pokhodnik" is an ultra-compact light tower for picnic
Order
The lighting area is more than 70 m2, the height is adjustable and equal to 2 m. The light source is two LED modules: upper one lights around with a soft, non-dazzling light, illuminating the entire place or the worksite while the second one removable with a clothespin allows you to additionally highlight the table / assembly place tents, etc.
The modules are controlled by separate switches and can be operated together or separately.
The built-in battery works autonomously up to 7 hours.
Has a weight 4.3 kg and easy to move!
Сan also operate from cigar DC input, a gas generator and solar panels used for recharging batteries.
High-quality mobile light items for everyday use!
Pokhodnik can help out not only at a picnic, but also during construction and rescue operations.

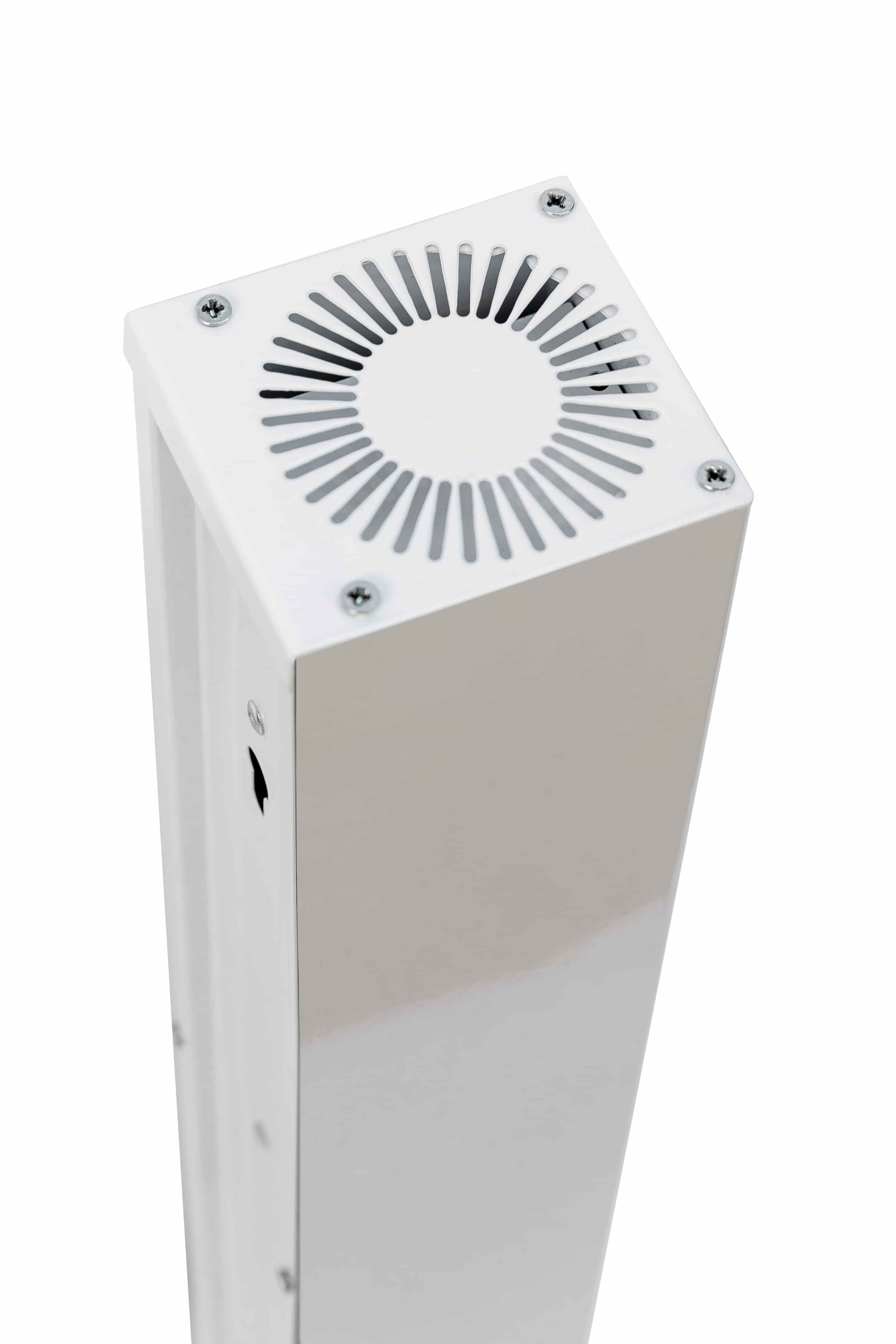

Wall-mounted recirculator of closed type BO-4N
Order
We offer a wide range of recirculators. Our experts will help you choose the equipment individually.
UV Power: 60W
Performance: 110 ± 10 m³ / hour
Degree of disinfection: 99%
For rooms II - V categories
Overall dimensions: 980 x 370 x 180 mm
Weight: 3KG
Transport dimensions:
1120 x 130 x 140 mm - in bubble wrap. Weight 4900 g
1160 x 160 x 170 mm - in a cardboard box. Weight 5200 g
Package contents: ultraviolet lamp TUV-60w (1 pc.) Manufactured by Philips, Osram (Ledvance). Changing lamps is quick and safe. A mobile rack with wheels can be ordered as an option.
The source of ultraviolet radiation is ozone-free lamps with a wavelength of 254 nm.
The absence of direct UV rays and ozone makes BO-4N recirculators absolutely safe for use in the presence of people.
The recirculator is designed to disinfect the air in rooms of all categories. Its main task is to operate in rooms where constant maintenance of aseptic conditions in the presence of people is required. Suitable for use in rooms with an increased risk of spreading diseases transmitted by airborne droplets and air.

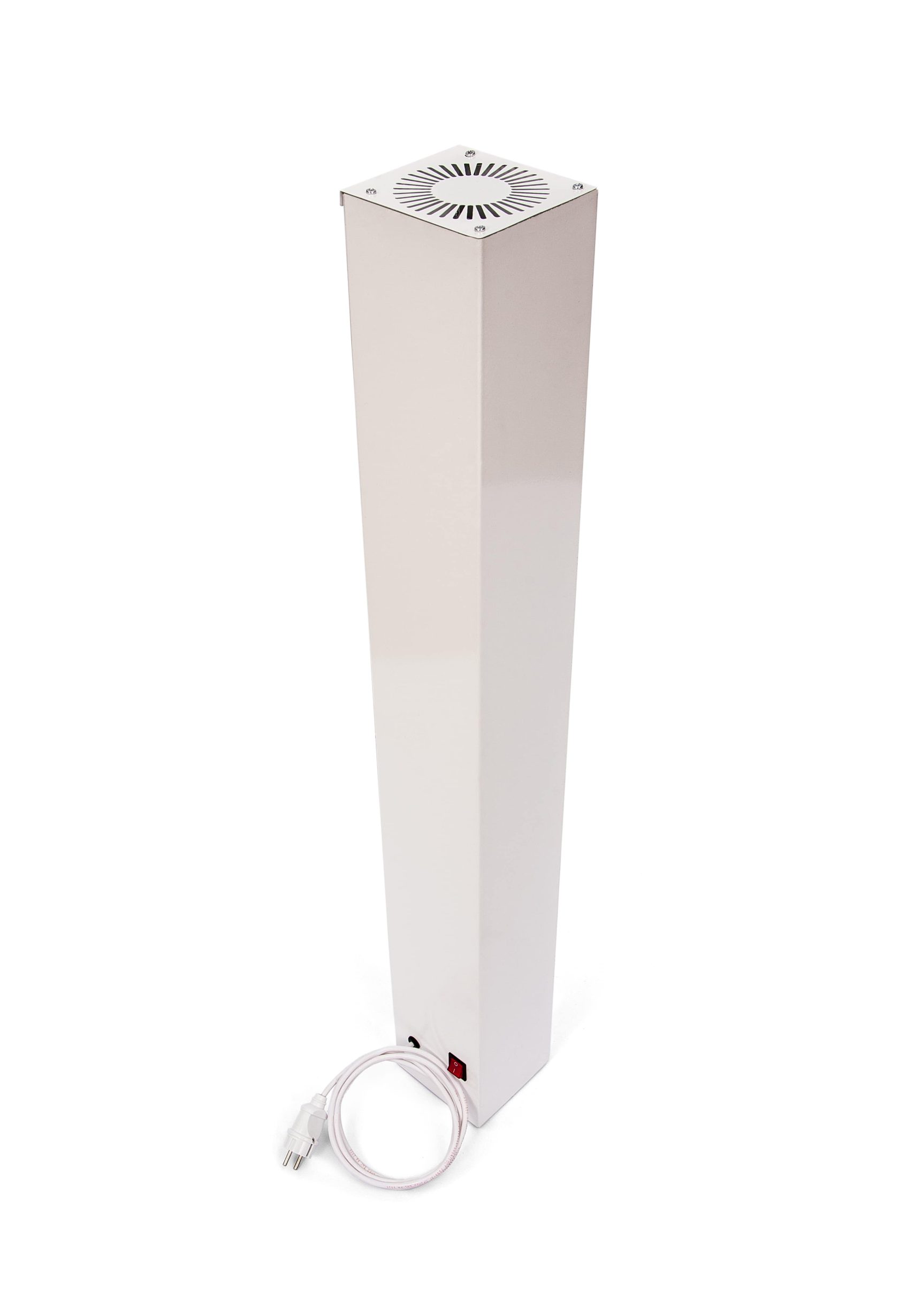

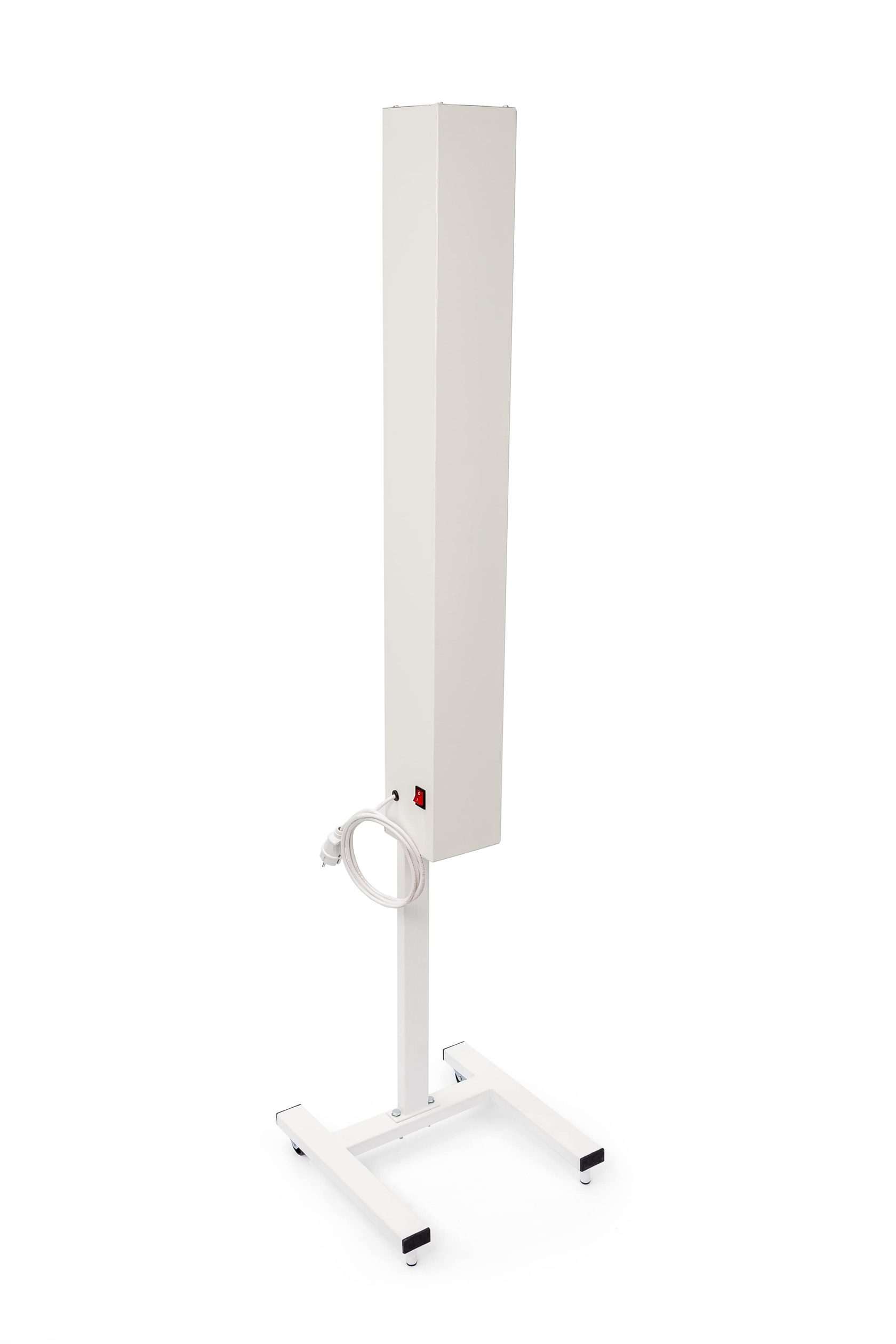

Recirculator of closed type BO-4N
Order
We offer a wide range of recirculators. Our experts will help you choose the equipment to meet your specification.
UV Power: 60W
Performance: 110 ± 10 m³ / hour
Degree of disinfection: 99%
For rooms I - V categories
Dimensions: Stand with base:
410x400x1500 mm (1570 mm from the floor). Weight: 4850g
Stand in the box: 1540x160x170 mm. Weight: 2700g
Base in the box: 420x420x90 mm
Complete set: ultraviolet lamps TUV-60w (1 pc.) Manufactured by Philips, Osram (Ledvance), mobile rack with wheels.
The recirculator is installed on a movable truck. The wheels are equipped with clamps. Changing lamps is quick and safe.
The source of ultraviolet radiation is ozone-free lamps with a wavelength of 254 nm.
The absence of direct UV rays and ozone makes BO-4P recirculators absolutely safe for use in the presence of people.
The recirculator is designed to disinfect the air in rooms of all categories. Its main task is to operate in rooms where constant maintenance of aseptic conditions in the presence of people is required. Suitable for use in rooms with an increased risk of spreading diseases transmitted by airborne droplets and air.
Оставьте ваши контакты, и мы отправим вам каталог.
Нажимая на кнопку, вы даете согласие на обработку персональных данных и соглашаетесь с политикой конфиденциальности.
Нажимая на кнопку, вы даете согласие на обработку персональных данных и соглашаетесь с политикой конфиденциальности.
Click to order
Ваш заказ
Total:
Укажите здесь ваш номер телефона, и с вами свяжется наш менеджер.
Нажимая на кнопку, вы даете согласие на обработку персональных данных и соглашаетесь с политикой конфиденциальности.
Get full catalogue
Get price-list
To proceed your request in details
Please upload your technical specification here and we will give a feedback with calculation and send you by
By clicking on the button, you consent to the processing of personal data and agree to the privacy policy.
About company
Moscow factory of lighting installations "Argus-M" is a Russian
enterprise with a powerful technical base and modern production facilities.
We manufacture generator sets (DGS), mobile autonomous video surveillance systems mounted on cars, trailers and sledges, mobile communication installations and intelligent energy-efficient diesel lighting masts for lighting in the absence of the ability to connect to the power supply network.
Argus-M has also produced innovative systems of autonomous lighting installations with remote intelligent control, video surveillance systems, communications and lighting systems based on renewable energy sources (solar panels, wind turbines) as well as autonomous mobile perimeter security systems with the possibility of remote control and notification.
In February 2020, Argus-M has started to manufacture UV germicidal disinfection items such as air recirculators with germicidal ultraviolet lamps, ozone generators, hands-free floor-based terminals for hand disinfection and sterilization. The main application: hospital, dental, physician, nursing homes, schools, small business, industry. The above products were specifically designed to go forward with new workplace requirements, support business during the pandemic and to combat the resurgence of Tuberculosis and the control of SARS, Avian Flu, SwineFlu H1N1, microorganisms, bacteria, viruses, fungi, spores, and new threats like COVID-19. Our production facilities located in Russia and cover more than 2000m². We produce up to 500 units per day and always maintain effective control over stores and inventory.
Argus-M has its own fleet of machine tools which offers turnkey high-precision manufacturing solutions as well as casing &devices manufacturing, metal laser cutting,
sheet metal fabrication, metal shaping; welding, metal lathe works.
Our mission:
Argus-M provides a wide range of industries with a flexible and dynamic set of lighting options while addressing all aspects of efficiency and safety.
